Pages and Templates

A page in Elements is a route that gathers data and a template that renders it. The template is real HTML, with typed attributes the route fills in. It arrives in the browser as a complete page, rendered on the server, and from that moment it is reactive: change the data and the page updates itself, down to the one element that changed. One file of HTML does both jobs.

A page is a route and a template

The route reads what the page needs and hands it to the template:

app/pages/channel/index.ts
import { Request, Response, sql } from "@elements/app";
import { Channel } from "./models";
import { messages } from "#app/shared/services/chat";
import html from "./template";

export default function route(req: Request, res: Response) {
  let channel = sql<Channel>(`
    select *
    from channels
    where id = ${req.params.id}
  `).firstOrThrow("no such channel");

  return new html({ channel, messages: messages.view({ channelId: channel.id }) });
}

The template declares what it takes, right on its opening tag, and renders it:

app/pages/channel/template.ehtml
import { LiveView } from "@elements/app";
import { Channel, Message } from "./models";

function onSend(form: { text: string }, messages: LiveView<Message>) {
  messages.insert({ text: form.text }, () => form.text = "");
}

<html (
  channel: Channel,
  messages: LiveView<Message>,
)>
  <main>
    <h1>#{channel.name}</h1>
    <ul>
      <MessageRow e:for={message of messages} {message} />
    </ul>
    <Composer {messages} />
  </main>
</html>

<MessageRow (message: Message)>
  <li class={["message", message.pinned && "is-pinned"]}>{message.text}</li>
</MessageRow>

<Composer (
  messages: LiveView<Message>,
  private form = { text: "" },
)>
  <form onsubmit={() => onSend(form, messages)}>
    <input value={form.text} placeholder="Message" />
    <button type="submit">Send</button>
  </form>
</Composer>

That is a live chat channel: the page renders with its messages, a new message appears for everyone watching, and the form clears itself after sending.

Templates take typed attributes

Every template declares its attributes on its opening tag, with types: <MessageRow (message: Message)>. The route passes them with new html({ ... }), one template passes them to another as attributes, and the type checker checks every hand-off. Pass the wrong shape and the build goes red at that line. Rename a field and your editor renames it in every template that uses it.

An attribute marked private is the template's own state, like form above, with a default value. There is no separate component class and no props interface to keep in sync.

Real HTML with lightweight syntax extensions

A template is the HTML you already write, plus a few lightweight syntax extensions:

• {...} puts a TypeScript expression anywhere HTML takes a value: text, attributes, class lists.
• e:if, e:for and e:switch show, repeat or choose elements.
• A top-level tag with a capital letter, like <MessageRow>, is a template you can use anywhere, with <slot/> for the content placed inside it.

That is the language. Templates are type checked like any .ts file, so a misspelled field is a build error with a line number, never a blank spot on the page.

Reactive, with nothing to wire up

Change the data and every part of the page that reads it updates on its own. The runtime patches the page at the smallest level the change needs, so a new message adds one row and leaves the rest of the page alone. Inputs bound with value={form.text} stay in step both ways: typing updates the data, and setting the data updates the input. And it crosses templates: a child that changes an attribute it was given updates the parent, with no events or callbacks in between.

Reactive UI from the browser console

Building a page means seeing it in every state it can be in: empty, full, loading, an error, a hundred rows. In Elements you see each one immediately. In the browser's developer console, $ is the page's template attributes. Set any of them and the page updates automatically, because the UI is reactive. There is no reload, no code change and no clicking through the app to reach that state.

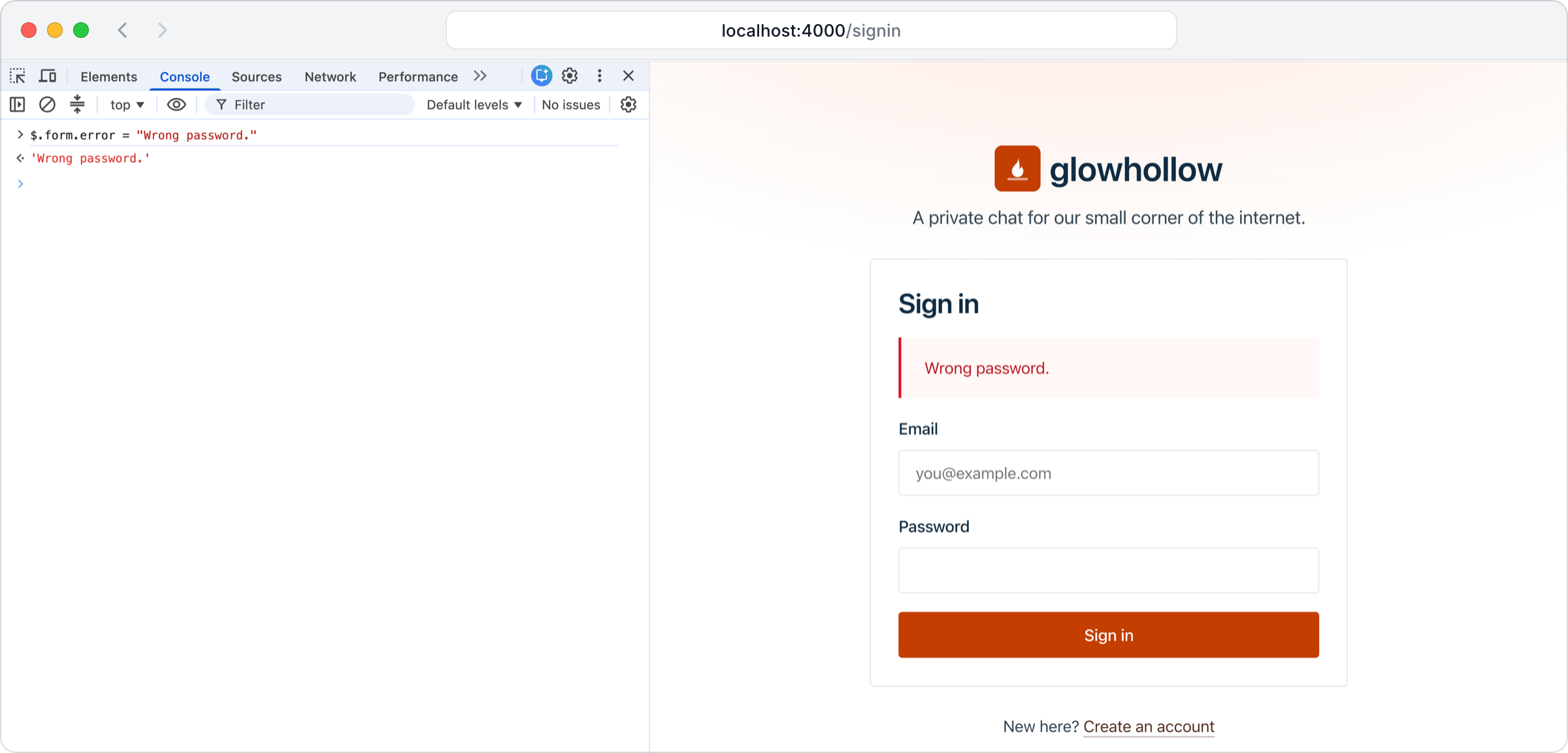

Browser console
$.form.error = "Wrong password."

Set a template attribute in the console, and the reactive UI updates:

Rendered on the server, live in the browser

The first response is the complete page, rendered on the server, so visitors and search engines see everything at once, with nothing to wait for. Then the browser picks the page up and makes it reactive, from the same template, with no second version of the page to write. A route can send live data with the page, such as a LiveTable view or a channel, and the browser keeps receiving its updates after it loads.

Data from the route and from the server

A route gathers a page's data when it loads. An @rpc function gets more whenever the page needs it, such as when a form is sent, and you call it from a template like any other function. Both run on the server, both read the signed in user from session, and both are type checked at build time, so the data a template receives is the data the server sent.

Route functions live next to their pages, wired up in the router

Each page's route function lives in the page's own folder, beside its template, like app/pages/channel/index.ts above. Your app imports them and says which URL each one answers, so a URL goes exactly where you say, not wherever a folder happens to sit:

index.ts
import home from "#app/pages/home";
import channel from "#app/pages/channel";
import admin from "#app/pages/admin";

app.route("/", home);
app.route("/c/:id", channel);
app.route("/admin/*", admin);

A larger part of your app, like admin here, can be a router with its own routes, mounted at a prefix. Patterns follow the web standard URLPattern, with named segments, wildcards and inline patterns like :id(\d+). The same routes serve pages and API responses: return a template and it renders, return an object and it is sent as JSON. Send someone elsewhere with redirect(url), which works the same in a route, a template and an @rpc function.

Caching that does the right thing

Every page is cached the right way by default, using the HTTP standard:

• Every page carries an ETag made from its source, its data and the session, so a page that has not changed answers 304 Not Modified and the browser keeps what it has.
• Every script, stylesheet and image has a hash in its file name, so browsers and any CDN in between cache it until it changes.
• Pages for a signed-in user stay private.

There is nothing to configure and no cache to clear by hand.

Styled from the first line

Every app comes with a design system. A bare <button>, <input> or <table> already looks finished, in light and dark mode. Classes such as class="button is-primary" vary it, and your own CSS is for layout.

Change a page and watch the browser update

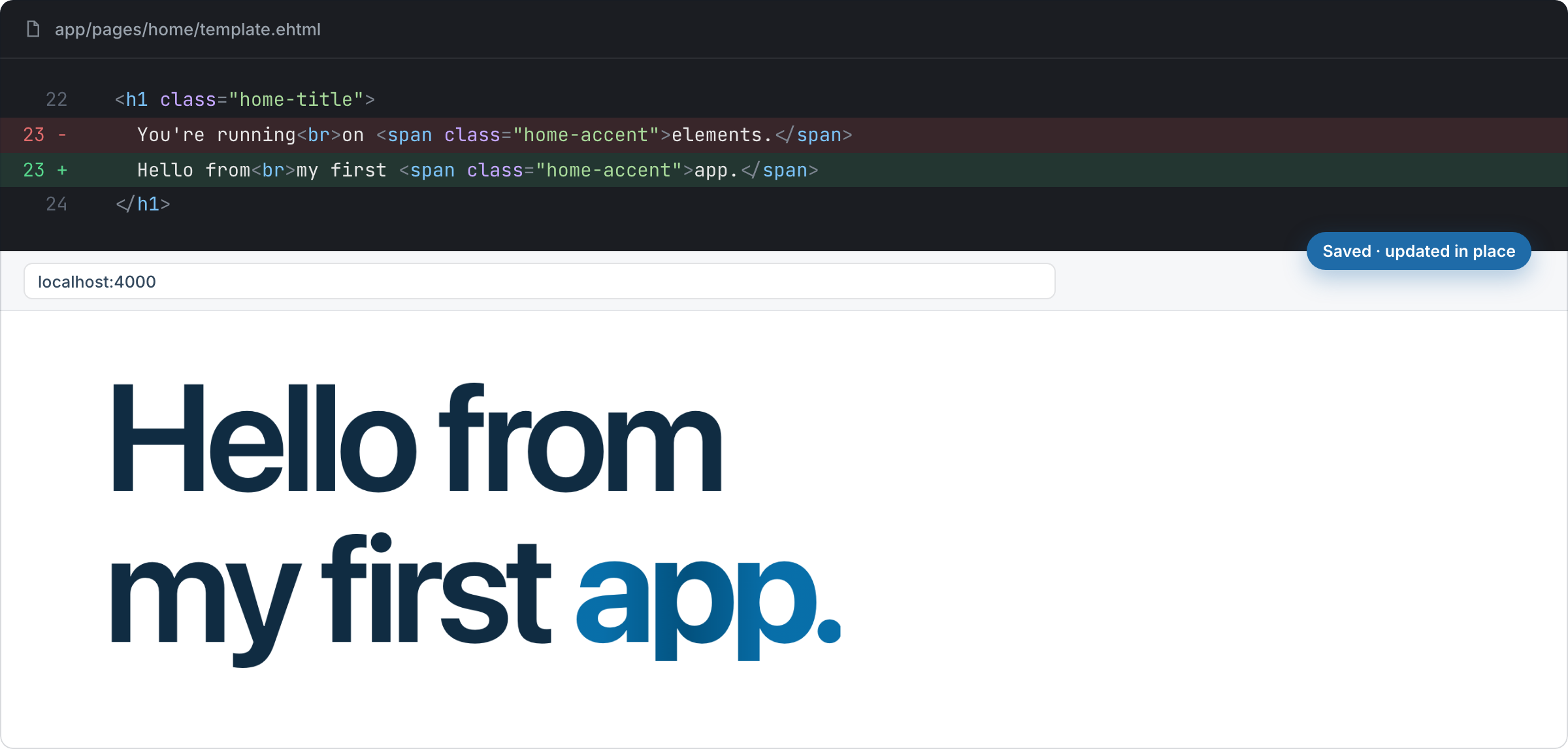

Open app/pages/home/template.ehtml in a new app, change the heading, and save. The browser you already have open updates on its own.

One line changed in the template, and the page updates in place:

A save often builds and reaches the browser in a few milliseconds, whether you made the change or your agent did.

See pages in a demo

• Glowhollow (opens in a new tab), community chat: live channels, reactions and unread counts from templates like the one above.
• Shortwick (opens in a new tab), a URL shortener: redirects, analytics and QR codes from plain routes.
• Awaywell (opens in a new tab), time off tracking that serves calendar feeds your phone subscribes to.

The manual: html (opens in a new tab), router (opens in a new tab), rpc (opens in a new tab), session (opens in a new tab), livetable (opens in a new tab), channel (opens in a new tab), assets (opens in a new tab), style (opens in a new tab).
